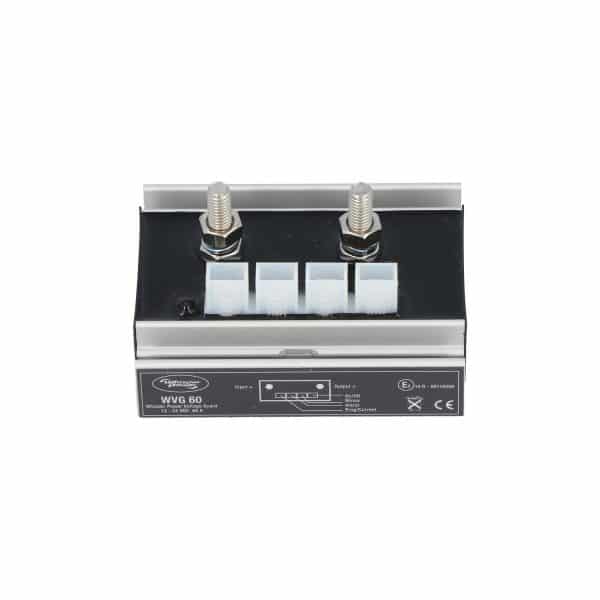

The Voltage Battery Guard WVG 40 / 60 is an intelligent, fully waterproof, battery guard with expansion capabilities for an on / off switch, alarm buzzer or relay and our Battery Watch (not supplied).
| ARTICLE NUMBER | |
| 60110250 | WVG 60 |
| DIMENSIONS & WEIGHT | |
| Weight (Kg) | 0.73 |
| Dimensions (H*W*D) | 61 x 112 x 120 mm |
| TECHNICAL SPECIFICATIONS | |
| Cable diameter | 15 mm2 |
| Automatic detection of 12V or 24V system | 8 – 20 V > 12 V mode 20 – 35 V > 24 V mode |
| Adjustable undervoltage programs | 10 |
| Overvoltage disconnect voltage | 12 V mode > 16 – 24 V mode > 32 V |
| Maximum load / shutdown | approx 60 A – 65 A |
| Surge | 120 A |
| Voltage drop | 0,1 V @ 60 A |
| Current consumption | Output active: 4 mA Output active: 2 mA |
| Shutdown at overload / short circuit | After 5 seconds (switch on again after 1 minute) |
| Voltage accuracy | 2% |
| Current accuracy | 20% |
| IP-code | IP66 |
