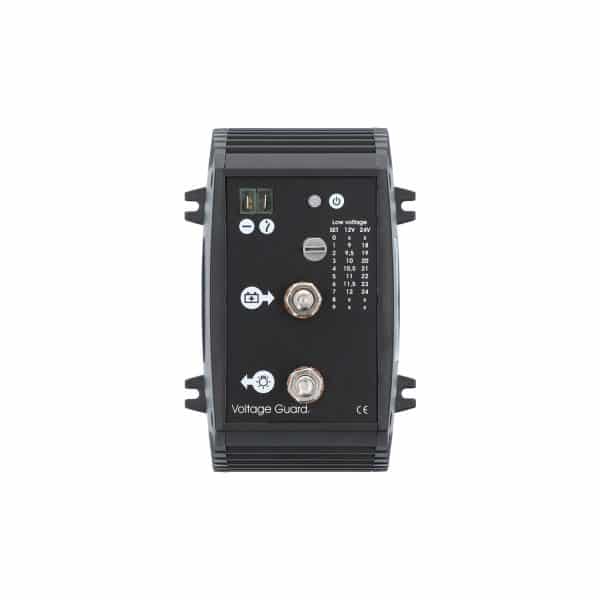

The Voltage Battery Guard WVG 40 / 60 is an intelligent, fully waterproof, battery guard with expansion capabilities for an on / off switch, alarm buzzer or relay and our Battery Watch (not supplied).
| ARTICLE NUMBER | |
| 60110200 | WVG 200 |
| DIMENSIONS & WEIGHT | |
| Weight (Kg) | 0.58 |
| Measurements (l x b x h) | 145mm x 92mm x 85mm |
| TECHNICAL SPECIFICATIONS | |
| Current (continue / intermitted) | 150 / 200 ADC |
| System voltage | 12 or 24 DC |
| Input voltage range | 8 – 31 VDC |
| Low voltage setting 12 V | 9 – 12 VDC |
| High voltage setting 12 V | 15,5 VDC |
| Low voltage setting 24 V | 18 – 24 VDC |
| High voltage setting 24 V | 31 VDC |
| Guaranty period | 1 year |
