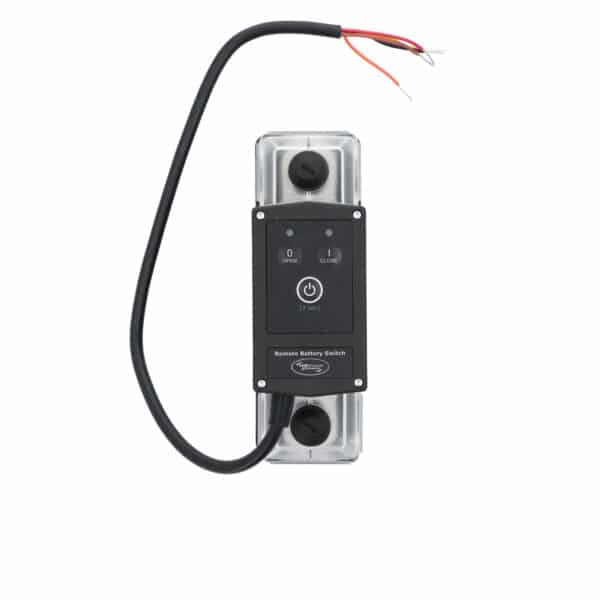

The DC Modular Remote Battery Switch (the Switch) is a smart high current magnetic latching contactor, that can handle continuous DC currents of up to 500 Amps. The Switch can easily be installed in an engine room or battery compartment while being controlled from a more convenient location by a small panel mounted switch. But the Switch can for instance also be controlled by a battery monitor or Lithium battery, as a discharge/overcharge protection.
| ARTICLE NUMBER | |
| 50214734 | WP-Remote Battery Switch 24 V / 500 A |
| DIMENSIONS & WEIGHT | |
| Weight (Kg) | 0.8 |
| Dimensions (mm) | 150.0 x 50.0 x 94.0 |
| TECHNICAL SPECIFICATIONS | |
| Rated voltage | 60 VDC |
| Nominal current | 500 A |
| Cranking current (1min.) | 1000 A |
| Nominal make / break current | 500 A (0..34 Vdc) / 350 A (35..60 Vdc) |
| Peak make / break current | 1600 A (0..34 Vdc) / 1200 A (35..60 Vdc) |
| Coil / supply voltage (+Vdc) | 14..34 VDC |
| Coil / supply current (idle state)1) | < 100 uA |
| Coil / supply current (state change)1) | < 3 A |
| GENERAL | |
| Remote control | By control wires |
| Local control2) | Top side buttons (On/Standby, Close contact, Open contact) |
| Indicators | Top side LEDs for Contact open, Contact closed, Error and Setup |
| Mechanical life | 100000 cycles |
| Electrical life | 10000 cycles |
| Operating temperature range | -20..+60°C |
| Connection stud size | M10 |
| DC Modular grid size | 1×3 |
| Protection class | IP65 |
| Standards | CE certified (EMC Directive 2014/30/EU, Low voltage Directive 2014/35/EU, RoHS Directive 2011/65/EU and Ignition protection standard ISO 8846) |
