Looking for a way to charge your multiple battery banks independently? Without the heat generation of conventional battery isolators. Looking for a robust solution without changing you charging system? Find our best-in-class electronic battery isolator range.
The WBI–series low voltage drop battery isolators have a negligible voltage drop and are therefore the ultimate solution for charging multiple battery banks with charge equipment whose charge voltage cannot be adjusted. Another advantage is that due to the low voltage drop the WBI does not waste charging energy. This results in a very high efficiency.
| ARTICLE NUMBER | |

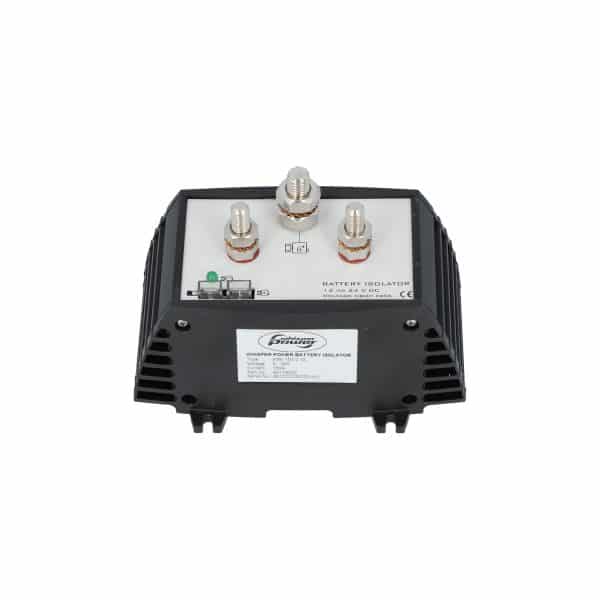

| 60115002 | WBI 150-2 IG |
| DIMENSIONS & WEIGHT | |
| Weight | 0.81 Kg |
| Dimensions (l x w x h) | 146 x 85 x 92 mm |
| TECHNICAL SPECIFICATIONS | |
| Number of outputs | 2 |
| Maximal current | 150 |
| Nominal system voltage | 12 or 24 VDC |
| Input voltage range | 8 – 30 VDC |
| Voltage drop | 0.0 V @ 10. A / 0.1 V @ 20 A |
| Insulation to ground | > 500 V @ 60 Hz |
| Operating temperature | -40..+85C |
| Conformity | EN 50081-1 (emission) EN 50082-1 (immunity) EN 60950-1 (safety) |
| Warranty | 2 years |
