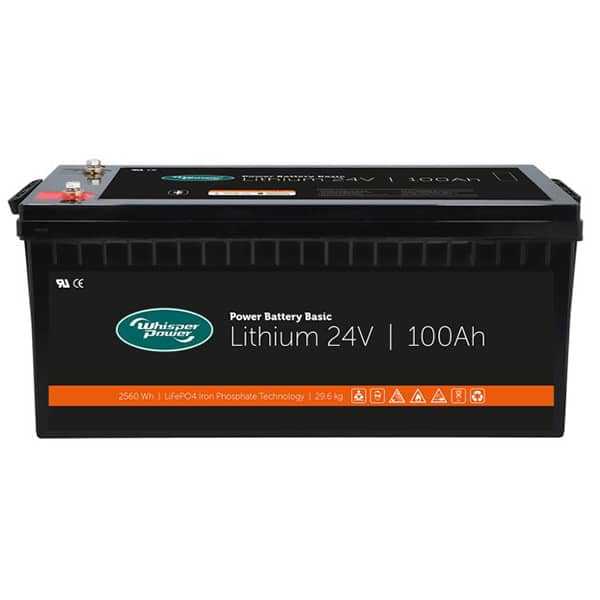

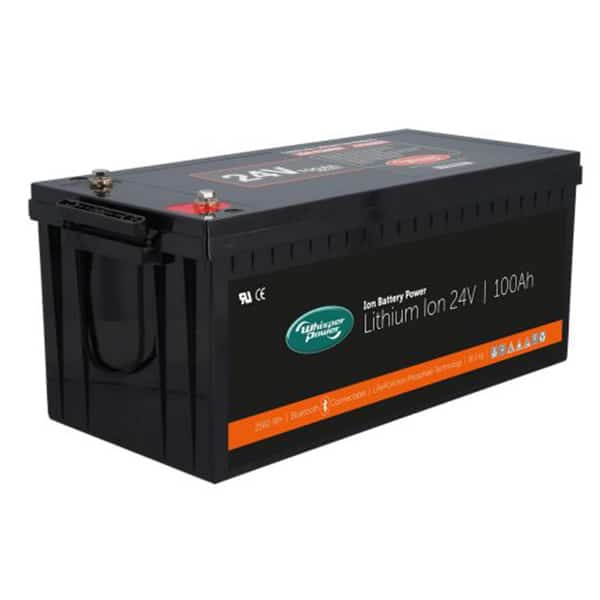

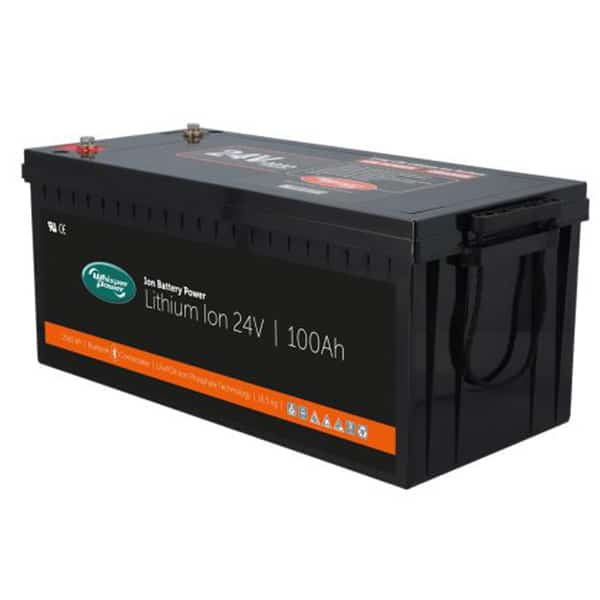

Our Lithium Power Basic 24 V – 100 Ah batteries are Lithium Iron Phosphate re-chargeable batteries. Lithium Iron Phospate (LiFePO4) technology is considered as the safest lithium technology available in the market.
Potential applications of this Lithium Power Basic 24 V – 100 Ah battery include: recreational vehicles, boats, recreational off-grid houses, industrial energy storage solutions.
| ARTICLE NUMBER | |
| 40291205 | Ion Power Basic 24 V – 100 Ah |
| TECHNICAL SPECIFICATIONS | |
| Nominal voltage | 24 V |
| Rated capacity | 100 Ah |
| Energy | 2560 Wh |
| Cycle life | >2000 cycles |
| Dimensions (LxWxH) mm | 522 x 240 x 224 mm |
| Weight | 29.6 kg |
| Terminal type | M8 |
| Battery housing | ABS, UL-94V-0 (check) |
| Housing protection | IP56 |
| CellType-chemistry | LiFePO4 Cylindrical Cell |
| CHARGE PARAMETERS | |
| Charge Method | CC-CV (check) |
| Charge Voltage | 14.4 ~ 14.8 V (check) |
| Recommended Float Voltage | 13.8 V (check) |
| Recommended Charge Current | 75 A (check) |
| Maximum Charge Current | 100 A |
| BMS Charge Cut-off Voltage | 15.6 V (check) |
| DISCHARGE PARAMETERS | |
| Continuous Discharge Current | 100 A |
| Peak Discharge Current | 750 A (<10 seconds) (check) |
| Recommended Volt. Disconnect | 10 V (check) |
| BMS Discharge Cut-off Voltage | 8 V (check) |
| Reconnect Voltage | 9.2 V (check) |
| Short Circuit Protection | 200~600 us (check) |
| TEMPERATURE PARAMETERS | |
| Discharge Temperature | -20 to 60 C |
| Charge Temperature | 0 to 45 C |
| Storage Temperature | -20 to 60 C |
| BMS High Temperature Cut-off | 80 C (176 F) (check) |
| COMPLIANCE PARAMETERS | |
| Certifications | UL1642 (cell), CE, IEC62133 & CB, KC, BIS (check) |
