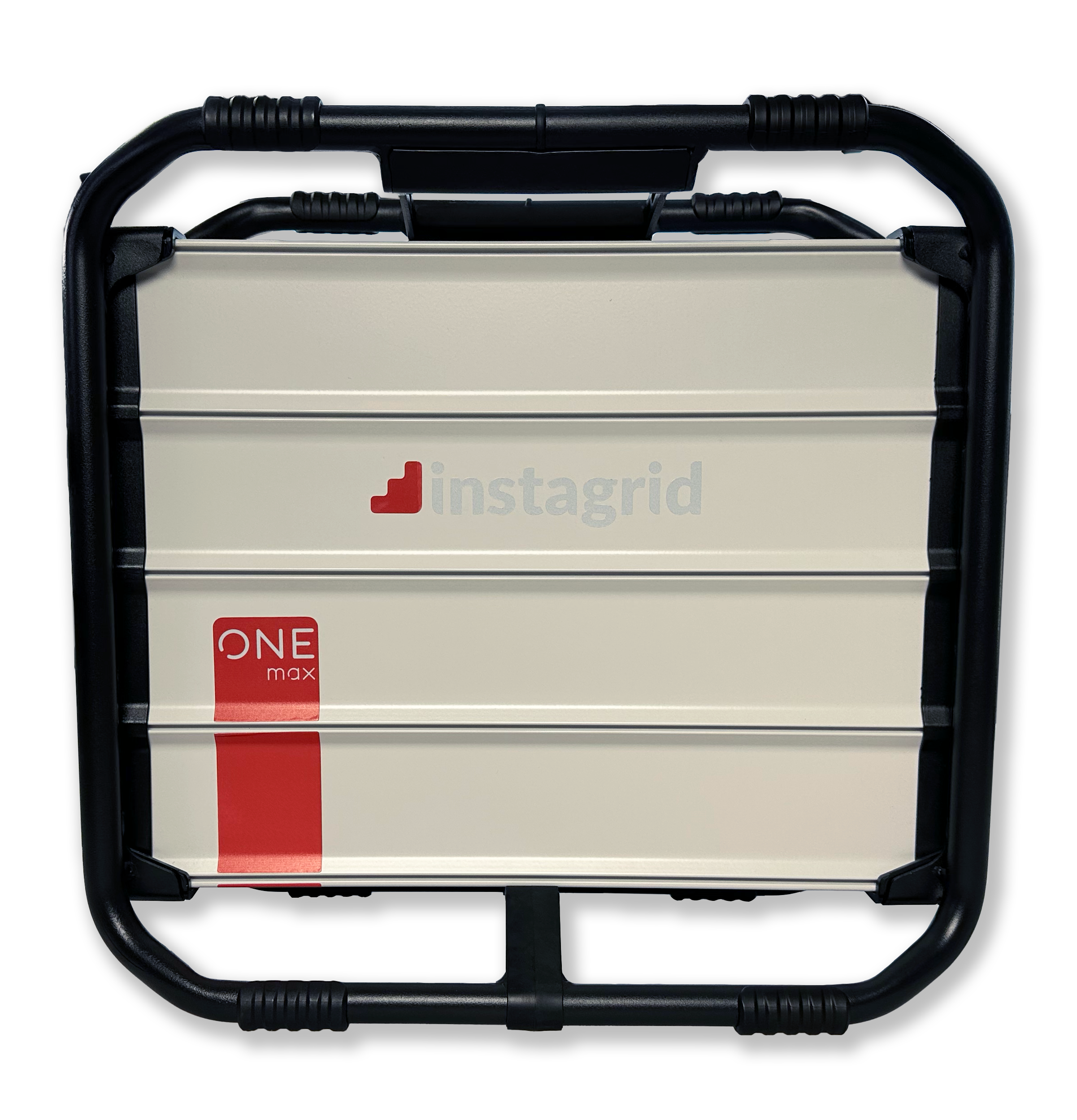

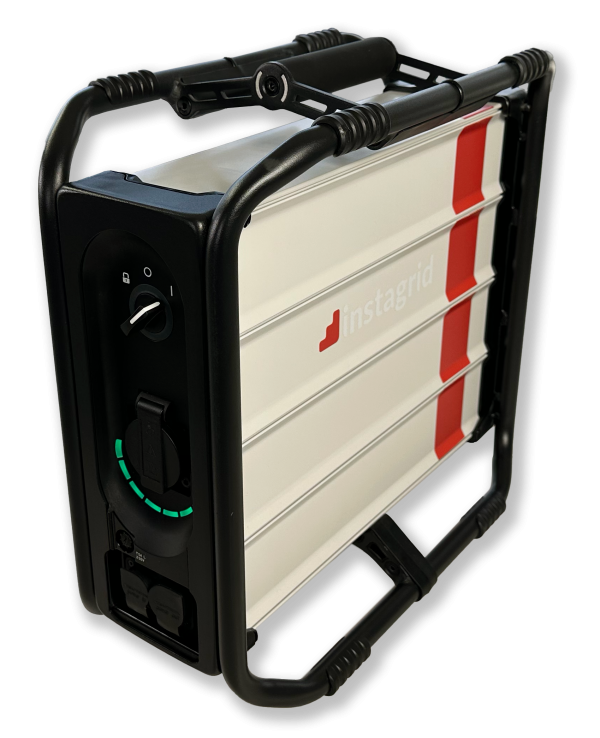

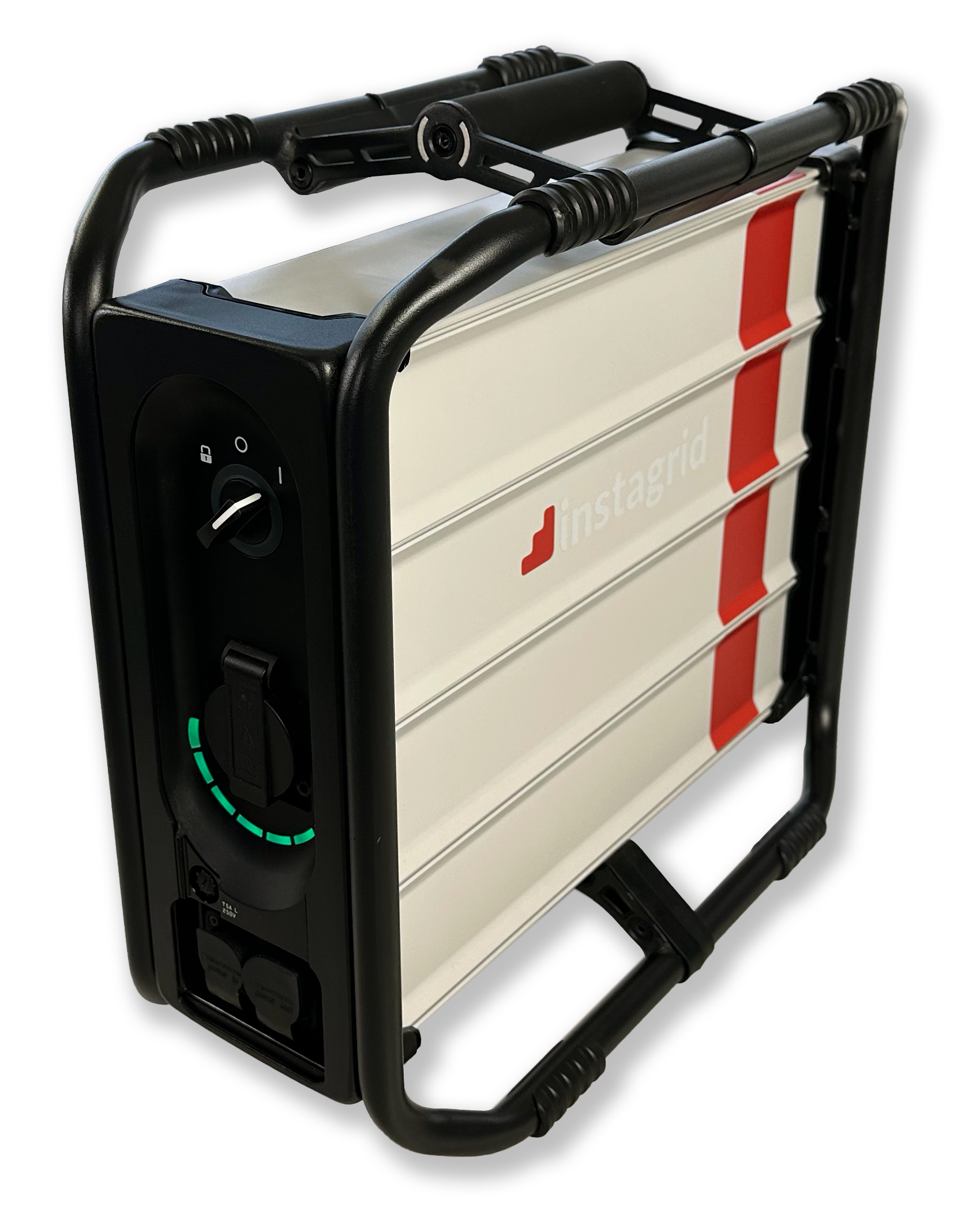

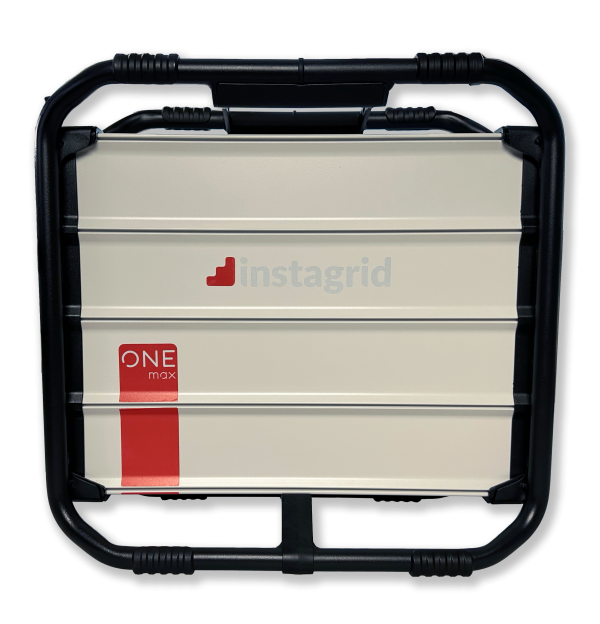

Instagrid ONE

Descriptions

EXCEPTIONAL POWER COMPACT AND EASY

  • No Limits: If your device can be powered from a wall socket, it can be powered with Instagrid.
  • Plug and Play: No cables, no hassle. Just plug in your tool and get work done.
  • Truly Portable: Nothing this powerful has ever been so compact and lightweight.

POWER YOUR ENTIRE WORKDAY

  • Long runtime: With 2.1 kWh, Instagrid ONE max delivers the most energy in a portable format.
  • See below what you can get done with one charge

DESIGNED FOR PROFESSIONALS

  • Robust and Efficient: Work under any conditions with Instagrid’s water and dust resistant system

CREATE AN OUTSTANDING EXPERIENCE FOR YOUR CUSTOMERS

  • Instagrid ONE max is completely silent and has zero toxic fumes

FAST CHARGING

  • 2.5 hours: Short on time? You can charge the Instagrid system even in the middle of your workday

BETTER THAN THE GRID

  • 18.000 Watt Peak: With the Instagrid system you can power your most demanding devices up to 18.000 W peak.
  • 3.600 Watt Continuous: Power your tools with 3.600 W pure sine from fine electronics to welding.

ONE HANDED PORTABILITY

  • 20 kg: Nothing this powerful has ever come in this size

ENGINEERED AND DESIGNED IN GERMANY

  • Instagrid portable power system is precision manufactured to meet the highest quality standards

RECOGNIZED WITH INDUSTRY LEADING AWARDS

RAISING THE BAR ON SAFETY

  • No grounding required: Instagrid power system is designed according to IEC protection class II
  • No tripping hazards: Reduce cabling
  • No toxic fumes: Create a healthier work environment, work indoors and in closed spaces

Specifications

Electrical
Output voltage 230 V (AC) / 50 Hz
Rated power output 3.6 kW (16 A)
Rated energy capacity 2.1 kWh
Charge duration < 3 h to 100%
On (idle) 150 h
Storage > 3 years (switch in “off” or “transport” mode)
Output socket EU CEE 7/3 Socket (16 A)
Output socket Neutrik powerCON TRUE1 TOP®
Input charging socket Neutrik powerCON TRUE1 TOP®
Physical
Weight 20 kg
Dimensions 420 x 210 x 420 mm
Outer case Recycled aluminium
Peak power
150% overload (>500 sec) 5.4. kW (24 A)
200% overload (>50 sec) 7.2 kW (32 A)
250% overload (>10 sec) 9.0 kW (40 A)
Peak power 18.0 kW (80 A)
Environment
IP class IP54
Noise emissions < 10 dB(A)
