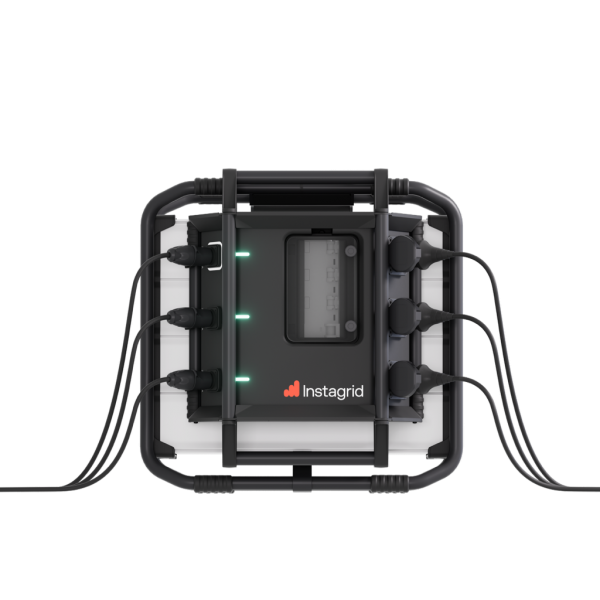

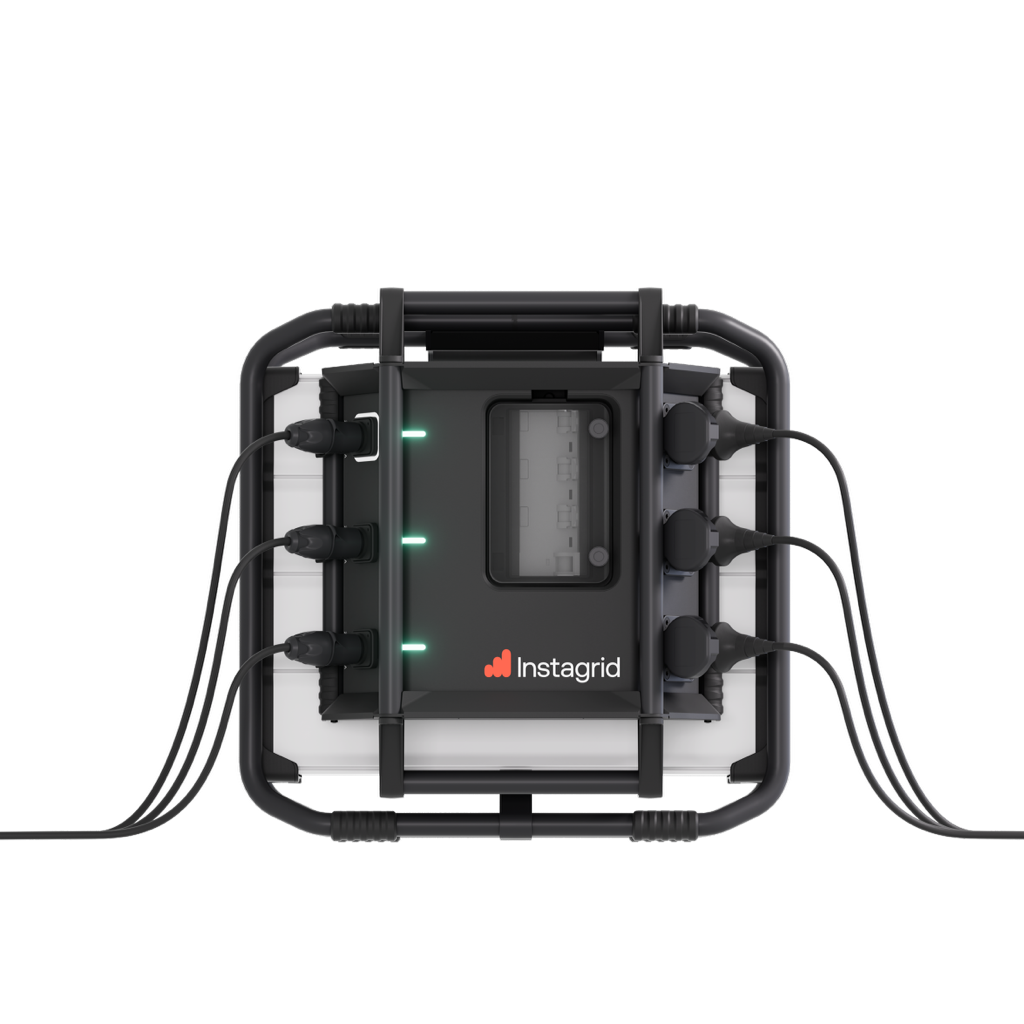

Instagrid LINK

Instagrid LINK

Descriptions

Extend the capacity of your Instagrid ONE. Use Instagrid LINK to connect up to three Instagrid ONE units together for more capacity and new and powerful applications.

Increase power capacity x3: Boost your capacity up to 6.3 kWh
Island Mode: Hot swap Instagrid GO units in and out without interruption
Mission-critical power supply: Set up a UPS by connecting GO and the mains
Run more devices: Use several high-powered tools at the same time

Specifications

Version	EU 230 VAC / 16 A	US 120 V / 20 A
Part #	IG-990-00001	IG-990-00006
Operation
Output Voltage	230 VAC / 50 Hz	120 VAC / 60 Hz
Output Current	16 A	16 A
Switching Time	< 20 ms	< 20 ms
Line Protection
Personal Safety Device	3 x 1P+N RCD type A, 30 mA	3 x 2P RCD type A UL, 30 mA
Line Protection	1P B16	1P 20A
General Information
Weight	4.5 kg	9.9 lbs
IP Class	IP54	IP54
Protection Class	Class II/ double-insulated	Class II/ double-insulated
Permitted Operation Temperature	-15 °C to 50 °C	-5 °F to 122 °F
Fixation	Hook-and-release concept for Instagrid GO Velcro strap around frame Wall mounting with screws	Hook-and-release concept for Instagrid GO Velcro strap around frame Wall mounting with screws
Connections
Input Socket	3 x Neutrik powerCON TRUE1 ® TOP ®	3 x Neutrik powerCON TRUE1 ® TOP ®
Output Socket	3 x CEE 7/3 16 A	3 x Nema 5-20R 20 A
