When leaving the marina and heading for the ocean, you are getting fully dependent on your boat electrical system. With Whisper- Power, you are secured electricity is guided into the appropriate conduits which prevents dangerous situations. The WhisperPower DC distribution program offers high quality components ensuring a safe and enjoyable trip.
| ARTICLE NUMBER | |

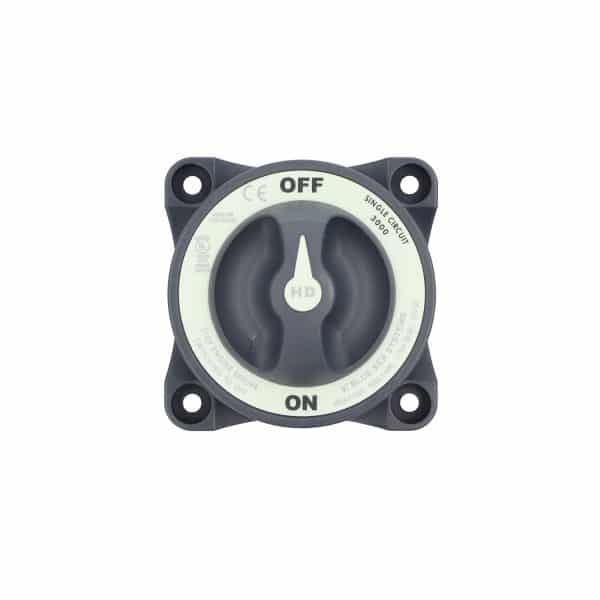

| 50214711 | DC Switch 600 A on-off |
| DIMENSIONS & WEIGHT | |
| Weight (Kg) | 0.59 |
| Enclosure width | 98 mm |
| Enclosure height | 79 mm |
| GENERAL | |
| Ambient operation temperature | -20 C … +40C |
| Storage temperature | -25 C … +85C |
| Operating humidity | 95%, non condens |
| MECHANICAL | |
| Connections terminal stud | M12 1/2”) |
| Connections stud lenght | 22mm |
| Maximum terminal Stud Torque | 24.86 NM (220 in-lb) |
| Terminal material | tin-plated copper |
| Drilling mounting centers | 76 mm |
| Rear panel mount diameter | 92mm dia |
| Mounting screws | m6 screw |
| Ingress Protection Class | IP66 |
| Enclouser Colour | RAL7024 Graphite Grey |
| Calbe clearance | 27.9 mm |
| Ignition Protection | Ul 1500 SAE J1170 |
| Markings | CE, Iso 8845 |
| INPUT | |
| Model type | Manual battery switch |
| Circuit type | on-off |
| Switch Positions | 2 |
| Battery combine function | – |
| I 10 Cranking rating 10 sec | 2750A |
| I 60 Cranking rating 1 min | 1325A |
| I 300 Cintermittent rating 5 min | 900A |
| I C continue rating | 600A |
| Vmno Voltage maxium Operation | 32V DC |
