When leaving the marina and heading for the ocean, you are getting fully dependent on your boat electrical system. With Whisper- Power, you are secured electricity is guided into the appropriate conduits which prevents dangerous situations. The WhisperPower DC distribution program offers high quality components ensuring a safe and enjoyable trip.
| ARTICLE NUMBER | |

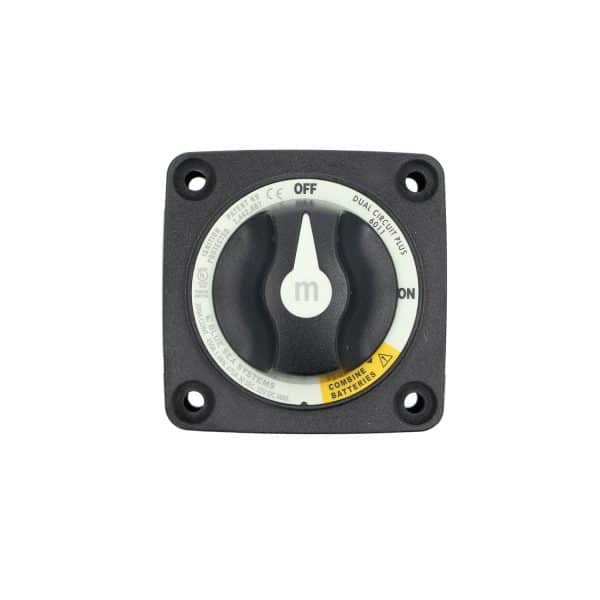

| 50214703 | DC Switch 300 A dual circuit+comb. |
| DIMENSIONS & WEIGHT | |
| Enclosure width | 72 mm |
| Enclosure height | 78 mm |
| Weight (Kg) | 0.28 |
| GENERAL | |
| Ambient operation temperature | -20 C … +40C |
| Storage temperature | -25 C … +85C |
| Operating humidity | 95%, non condens |
| MECHANICAL | |
| Connections terminal stud | M10 (3/8”-.16) |
| Connections stud lenght | 24 mm |
| Maximum terminal Stud Torque | 13.56 NM (120 in-lb) |
| Terminal material | tin-plated copper |
| Drilling mounting centers | 56 mm |
| Rear panel mount diameter | 61 mm dia |
| Mounting srews | 12 mm |
| Ingress Protection Class | IP68 |
| Enclouser Colour | RAL9011 Graphite Black |
| Calbe clearance | 30 mm (1.12”) |
| Ignition Protection | Ul 1500 SAE J1173 |
| Markings | CE, Iso 8848 |
| INPUT | |
| Battery input | 2 |
| Switch Posistions | 3 |
| Battery combine function | yes |
| I 10 Cranking rating 10 sec | 1500 A |
| I 60 Cranking rating 1 min | 775 A |
| I 300 Cintermittent rating 5 min | 500 A |
| I C continue rating | 300 A |
| Vmno Voltage maxium Operation | 32VDC |
